Compressed Industrial Gas Cylinders

Liquid Oxygen Pump

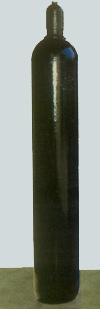

We offer good quality seamless cylinders for compressed gases such as Oxygen / Nitrogen / Argon as per the following specifications.

1) Water Capacity : 46.5 - 47 Litres
2) Wall thickness : 5.0 mm min.
3) Outside diameter : 232 mm
4) Length (nominal) : 1240 mm
5) Weight (nominal) : 53.5 kg
6) Working Pressure : 15 Mpa (150 Bar)
7) Testing Pressure : 25 Mpa (250 Bar)
8) Thread of Cylinder : BS 341-1"-14
9) Configuration : With cap and neck ring but without valve
10) Bottom Type : Concave bottom type
11) Color : Black or as per your preference
12) Material : 34Mn2V or 37Mn steel

Incase you want cylinder with valve, please specify.

Payment Terms : By Confirmed, Irrevocable Sight L/C.

Delivery : The Cylinders can be delivered within 60 days after receipt of Original L/C.
